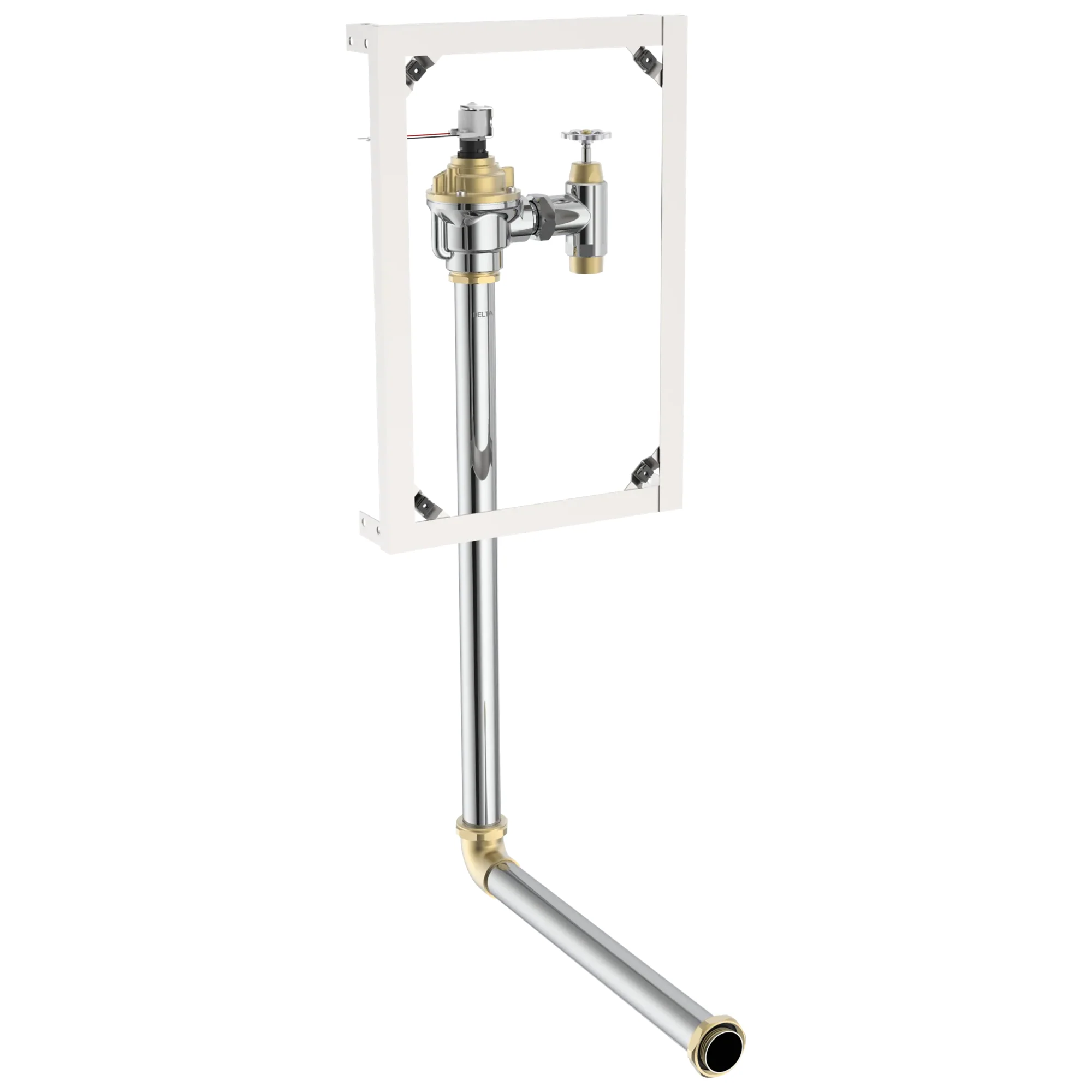

E-Concealed Hardwire Flush Valve Rough-in

---

• Wallhung water closet, 1-1/2" back inlet
• 12" x 18" mounting frame with 14" x 20"cover
• Rough-in ONLY (must order TRIM 1600T6102ATR for complete product)
• Pressure loss check angle stop with wheel handle
• Teck® chloramine resistant diaphragm
• Renewable seat
• Adjustable inlet/valve outlet centers
• Rough-in ONLY (Trim 1600T6102ARI-42 sold separately)
• Adjustable 114mm (4.5") to 132mm (5.19") inlet/valve outlet centers
• Quiet action Teck® chloramine resistant diaphragm for smooth operation
• Renewable seat for long-lasting durability and ease of maintenance
• Vacuum breaker
• For wallhung water closet with 1-1/2" back inlet
• Hands-free operation
• Weight: 13.15 lb

---

Additional Resources:
Specification Sheet
Installation Sheet
